Original OWP-BL43-426T High Efficiency Electric Water Pump for EVs' Battery Thermal Management
Model No.:OWP-BL43-426T
Power Input:24VDC(18-32VDC)
Rated power:240W
Rated Flow rate :2400L/H @ H=17M
Max Flow:5000L/H
Max Lift Head:20M
---------------------------------------------------------------------------
Medium: glycol(50-60%)+water, dielectric oil,Electronic fluorinated solution
Medium temperature:
Working long hours guaranteed
-40℃ to +85℃ (-40°F to + 185°F)
Outlet diameter: 25mm
Speed regulation:Yes
Fault Feedback signal:Yes
IP Grade:IP67
Noise control:≤60dB
Service life:＞20000hours
Weight: 2200g
Pump Applications
EWP For Liquid-cooled supercharger
Glycol circulation booster
Fluorinated liquid pump
Electric pump for boosting electric insulating oil
Electric coolant pump for immersion-cooled of data center
electric truck coolant pump 5hp water pump
Automotive Water Pump for Antifreeze Circulating
■ System pressure
-0.5-2.5 Bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.
■Temperature parameter
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%
Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the service life)
Features
◆With constant flow controlling
◆Reverse polarity protection
◆Dry running protection
◆Over Voltage, over current protection
◆Overload, over temperature protection
◆Single-stage Centrifugal pump
◆Magnetic force transmission (shield pump structure)
◆High efficiency brushless DC motor, low power consumption, high efficiency, more than 20000hours service life.
◆With wide range operating temperature
◆Speed controlling
Driving Motor : brushless motor
◆Waterproof based on IP67 rating (en60529)
◆Connector model: AMP282106-1 (matched Plug AMP282088-1)
◆Nozzle size:25mm
◆Motor winding frame :PPA GF
◆Pump housing: Aluminum
◆Bracket: Steel
◆Bracket hoop: Rubber
Driving device (Including motor)
◆Driving electromagnet: nylon plastic capsulated magnet
◆Screws and nuts: SUS 304 stainless steel
Pump Advantages
Professional electromagnetic theory design verification ,makes our pump motor 3-5% higher efficiency than other competitors.
Simulation calculation of hydraulic design by professional software makes our impeller and volute reach to the best match for higher hydraulic efficiency than others
Automotive grade electronic components makes our pump withstand extreme harsh operating environment
Our clients come from 36 countires with high reputation in their fields.
Performance
Pump overall size

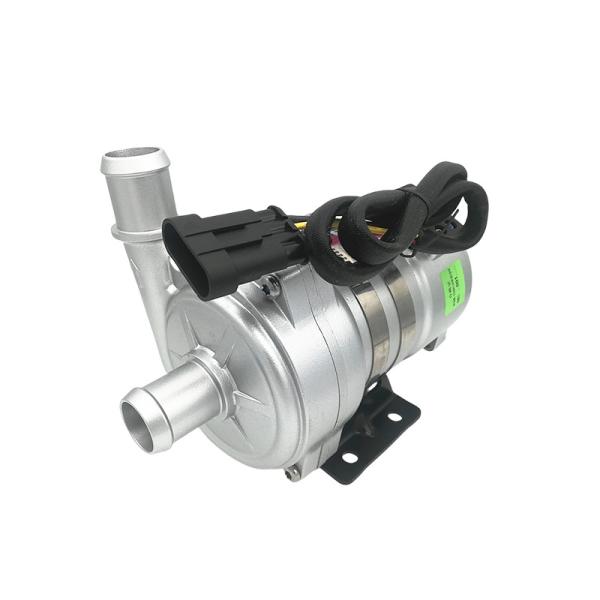

Pump's Appearance
Manufacturing Technique
we have 5 semi-automatic pump production lines in dust-free workshops
1000m² testing room, UL certified lab and R&D deparment with 175 sets testing machines for pump design and development verification,durability testing,aging testing,performance testing.
Verify capabilities and equipments
Over 50 typical testings performed according to automotive standards
